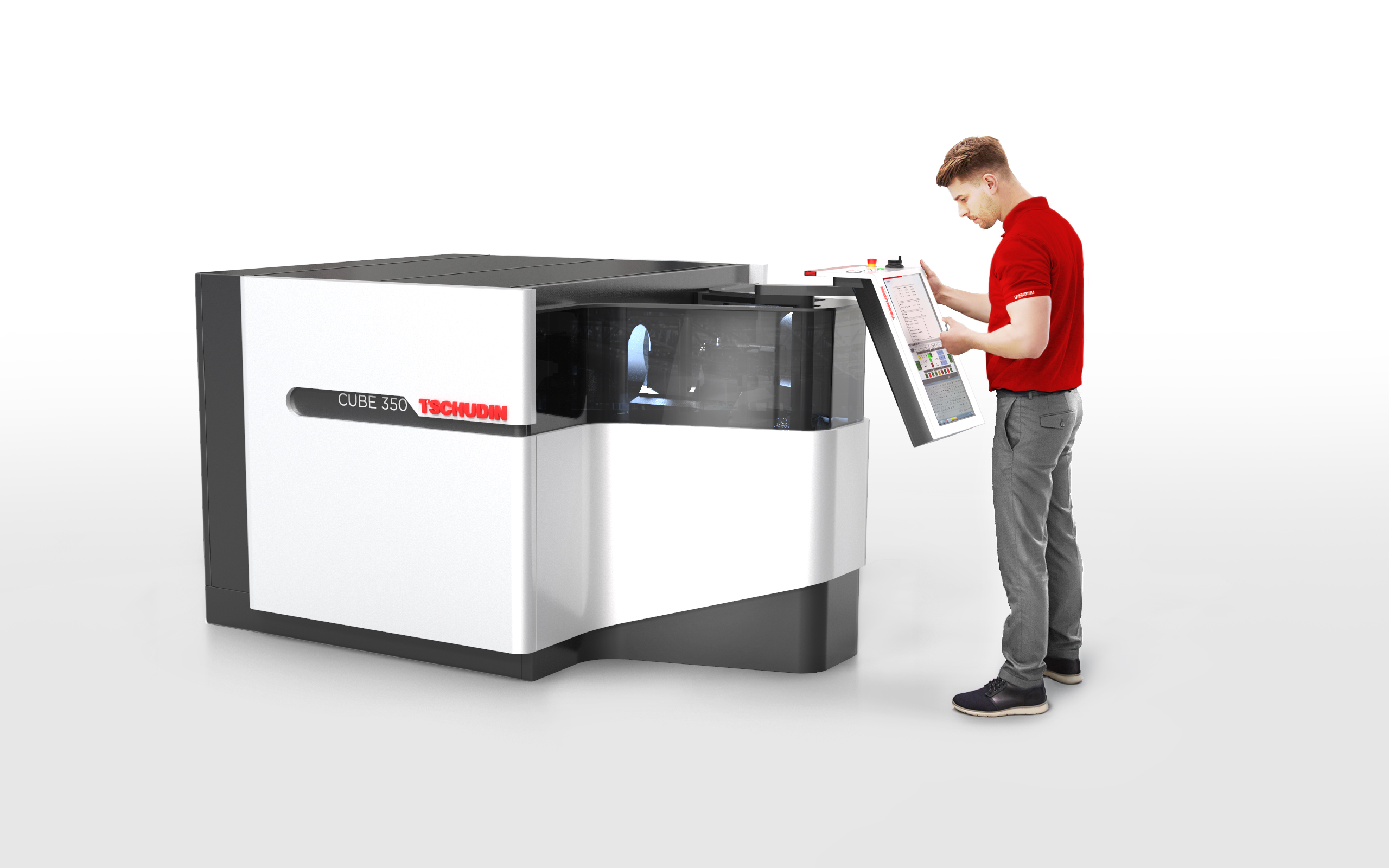

The CUBE 350 is a high-precision, three-axis centerless grinding machine with an extremely small setup area (2558 x 1735 x 1320 mm). The machine only needs to be accessible from the rear for maintenance. This allows multiple machines to be positioned closely in confined spaces.

The machine setup of the CUBE 350 is simple and low-maintenance, thereby reducing operating costs over the long term.

The machine bed and carriage made from natural granite guarantee thermostable, highly precise and reliable grinding processes.

A big plus are the short set-up times and the simple and CE-compliant loading and unloading outside the grinding zone. The in-house software TSCHUDIN “easy” makes operation and automation easy and convenient.

The new compact centerless grinding machine was specially developed for machining small components with part diameters of less than 0.1 to 20 mm and small batch sizes.

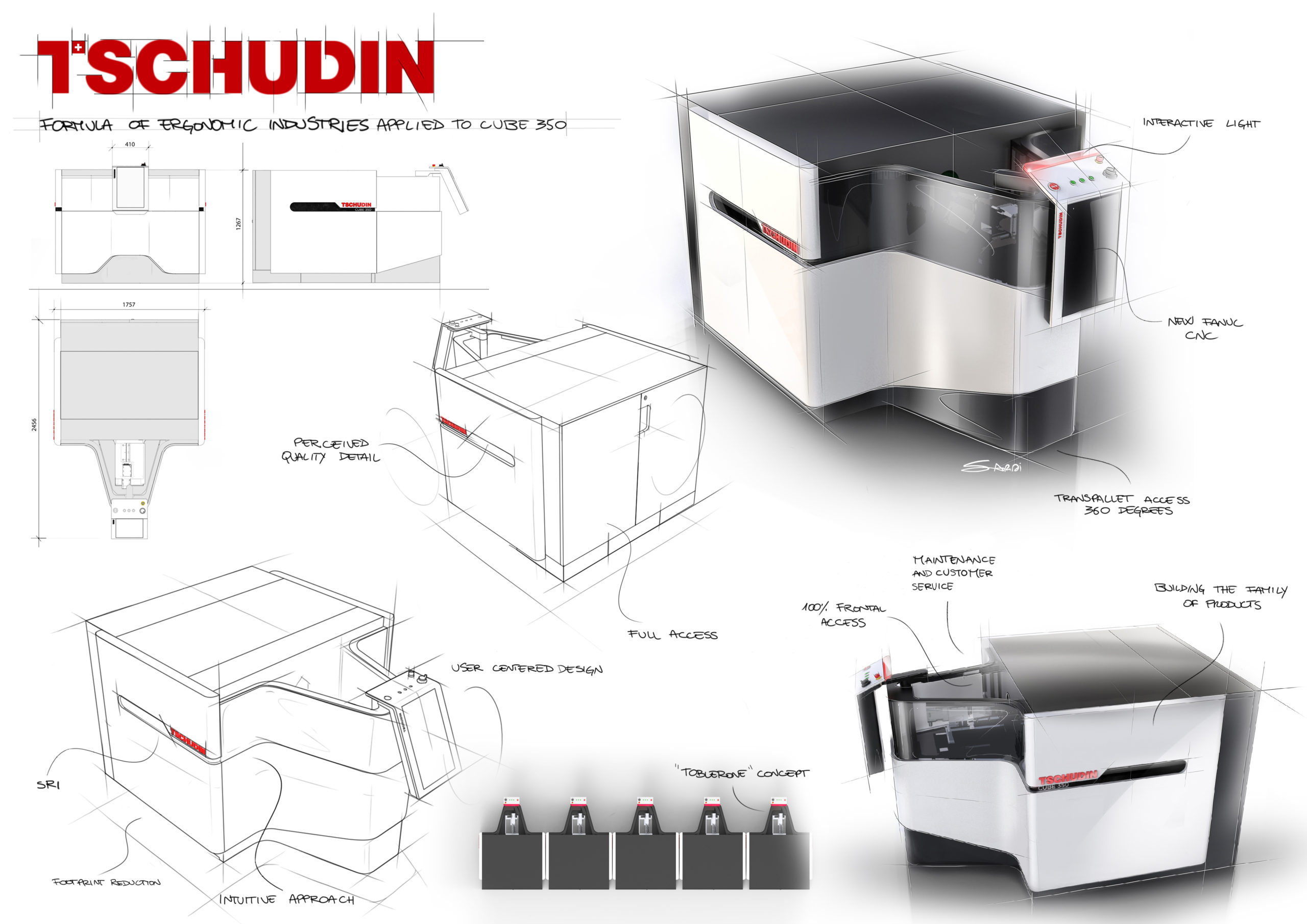

The design should not only combine elegance and functionality. Our goal was to put the operator in the centre and make to convey fun and enjoyment at work.

The CUBE 350 can be loaded safely and ergonomically by right-handers as well as left-handers. (Pat. CN111958342A; EP3741508A1; JP2020189399A; KR20200134167A; US2020368872A1)

The patented, movable workpiece support makes the CUBE 350 a true all-rounder and extends the process options: roughing and finishing in a double cycle, grinding sharp edges, targeted approach to cones / chamfers and radii – the CUBE 350 can be used in many ways.
